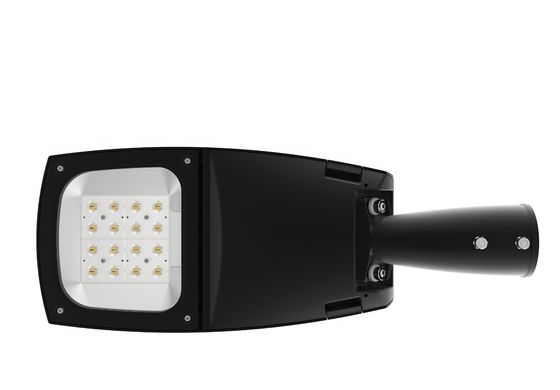

Aluminum LED Street Light for 120-200W Input Wattage with 5 Years Warranty for Industrial Zones
Product Description
This is an updated version from our YASL-14 model. We've improved it with greater efficiency and competitive pricing. Available in five sizes, it can be manufactured from 20W to 320W.
Technical Specifications
| Product Code |
YASL-35-40(M) |
YASL-35-60(M) |
YASL-35-90(M) |
YASL-35-150(M) |
YASL-35-240(M) |
| Input Wattage |
30-50W |
50-80W |
60-120W |
120-200W |
200-320W |
| Number of Lens (PCS) |
4 |
6 |
9 |
15 |
24 |
| Product Size (mm) |
563x215x110 |
613x240x110.2 |
654x256x114 |
780x287x114 |
834x341x114 |
| Packing Size (mm) |
610x250x260 |
660x280x260 |
710x300x260 |
810x330x260 |
860x380x260 |
| Net Weight (kgs) |
2.95 |
3.55 |
4.0 |
5.0 |
6.2 |
| Gross Weight (kgs) |
3.6 |
4.0 |
4.5 |
5.5 |
6.8 |
| Quantity of packing (pcs) |
1 |
1 |
1 |
1 |
1 |
| Installation Height (m) |
3～8 |
4～8 |
6～10 |
8～12 |
8～14 |
| Installation Pipe Diameter |
60 |
60 |
60 |
60 |
60/76 |
- Adjustable Angle: ±15°
- Materials: Housing: ADC12; Cover: Toughened Glass; Screws: 304 stainless screws
- LED Brand: LUMILEDS, OSRAM, CREE (Optional)
- LED Specifications: 3030, 5050 (Optional)
- Optical Effect: 130～190 lm/w (Optional)
- Color Temperature: 2700K, 3000K, 3500K, 4000K, 5000K, 5700K, 6500K (Optional)
- Color Rendering Index: Ra≥70; Ra≥80; Ra≥90 (Optional)
- Optics: TYPE I, TYPE II, TYPE III, TYPE V, TYPE IV (Optional)
- Driver Brand: PHILIPS / OSRAM / TRIDONIC / MEAN WELL / SOSEN / INVENTRONICS
- Input Voltage: AC90～305V
- Security Level: Class I/Class II/Class 1/Class 2 (Optional)
- Frequency Range: 50/60Hz
- Power Factor: PF≥0.95
- Dimming Mode: Time control/0-10V/Optical control/Microwaves/DALI (Optional)
- Lightning Protection: 10KV/15KV/20KV (Optional)
- Working Conditions Range: -40 to 45℃, 20% to 90% RH
- Warranty: 5/8 year (Optional)
- Protection Level: IP66; Glass IK08/09/10 (Optional), Lamp shell IK08
- Certifications: ENEC; CE; CB; IEC; RoHs; TUV; Lightning protection; LM-79; LM-80; IP66
Frequently Asked Questions
Q1. What is your terms of payment?
Usually, we accept T/T, irrevocable L/C at sight. For regular orders, we prefer 30% in advance, 70% against the B/L. For long term business relations, we have more advantageous terms for payment.
Q2. What is your terms of delivery?
We accept FOB, CIF, etc. You can choose the one which is the most convenient or cost effective for you.
Q3: What is the lead time?
It usually takes 25 to 35 days after sample confirmation and receiving your advance payment. The specific delivery time depends on the items and the quantity of your order. If the item is non-standard, we need an extra 10-15 days for tooling/mould production.
Q4: How about tooling Charge?
Tooling charge is only charged once with the first order. All future orders would not be charged again, even for tooling repair or maintenance.
Q5. What is your sample policy?
We are glad to send wholesale LED street light samples for your inspection. Standard samples can be free, but clients need to cover the freight cost.
Q6. Can you produce according to the samples or drawings?
Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q7: How to confirm the quality with us before starting to produce?
1) We can provide wholesale LED street light samples and you can choose one or more, then we make the quality according to that. 2) Send us your samples, and we will make it according to your quality.
Q8: How to solve the quality problems after sales?
Take photos of the problems and send to us. We will make a satisfied solution for you within three days after we confirm the problems.
Q9. What is your terms of packing?
Generally, we pack our goods in neutral cartons. If you have a legally registered patent, we can pack the goods with your logo after getting your authorization letters.
Q10. Do you test all your goods before delivery?
Yes, we have 100% test before delivery. We have QC team comply with TQM, each step is in compliance with the standards.
